Bimetal
Thermometer |
-: Back |
| Type |
Dial Size |
Range |
Accuracy |
Case |
Bourdon |
Bulb, Stem & Connection |
| Bi-Metal |
2.5", 4",6" |
-50 °C upto 600 °C |
1%, 1.5% |
Press Steel,
SS/Cast Aluminum
(Weather Proof} |
- |
Non ferrous/SS |
| Mercury Filled / Gas Filled |
2.5", 4",6", 8", 10" |
-38°C upto 600 °C |
0.5 % ,1% |
SS/Cast Aluminum
(Weat5her Proof) |
SS/Alloy Steel |
M.S. / SS |
| # Movement Material : Non-ferrous / SS 304 / 316 (Other As Required) |
| # Connection Size :1/8",1/4", 3/8" ,1/2" BSP/NPT (M). M20 * 1.5 (Other as per your requirement) |
| # Mounting : Direct/Projection/Surface with bottom entry & flush panel with back entry. |
| # Window : Instrument Glass / Shatter Proof/ Toughened / Acrylic As required |
| # Standard Fitment : Micro zero adjustment facility (For 4", 6", 8"/10" Dial size) |
|
|
|
| Types |
: |
Horizontal, Vertical and all angle type |
| Dial Size |
: |
50,63, 100 & 150 mm. |
| Accuracy |
: |
± 1% of range span. |
| Stem & Connection |
: |
Non ferrous and Stainless Steel. |
| Case |
: |
Cast aluminum / Stainless Steel. Weather Proof |
| Stem Dia |
: |
12 / 10 mm std. Other as per Your requirement |
| Immersion Length |
: |
As Per Your Requirement |
| Connection |
: |
1/2" BSP (M). OR as required |
| Mounting |
: |
1) Horizontal with back entry.
2) Vertical with bottom entry. |
| Ranges ( °C ) |
: |
-50+50, 50, 100, 120, 150, 200, 250, 300, 400, 500 °C |
|
|
| |
Mercury in Steel Thermometer |
-: Back |
| |
|
 |
| Types |
: |
Rigid Stem & Distance (Capillary). |
| Dial Size |
: |
100, 150 & 250 mm. |
| Accuracy |
: |
± 1% of range span, with Ambient Compensation. |
| Bulb Stem & Connection |
: |
Mild Steel or SS 316 Material. |
| Bourdon |
: |
Alloy Steel Or Stainless Steel. |
| Case & Bezel |
: |
Cast aluminium stove enamelled black finish case with screwed inner bezel of ABS plastic / Stainless Steel case with bayonet lock type bezel. Weather Proof to IP-66 |
| Bulb Dia |
: |
8/10 / 12 mm (standard) OR as Required |
| Stem Dia |
: |
As per bulb dia. selected |
| Capillary |
: |
Flexible PVC, Copper, PVC on Copper, Solid Drawn SS, SS Armored, PVC on SS , length as per customers requirement (max. up to 15 meters). Std. 3 Meters |
| Immersion Length |
: |
As Per Requirement , Adjustable Throughout capillary / Stem can be provided |
| Connection |
: |
1/2", 3/4" BSP (M), other as required |
| Mounting |
: |
Vertical (bottom entry) & Horizontal (back entry) with adjustable union for Rigid stem type.
Panel (surface) wit bottom entry & flush panel back entry with adjustable union for Distance (capilary) type. |
| Ranges ( °C ) |
: |
-38+50, 50, 100, 120, 150, 200, 250, 300, 400, 500 &
600 °C ( any Range within above ranges) |
| Accessories |
: |
Anivibration spring, Single & Double Electric contact. Thermowell's , Max Reading Pointers Etc. |
|
|
| |

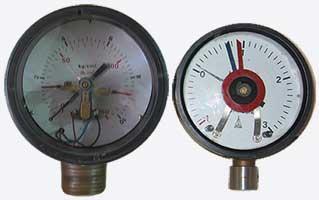

Gauges with Electric, Alarm & Control Contact |
-: Back |
Note : We also make WTI, OTI and all other types of Oil Temperature Gauges for Transfomer Industries. |
One normally open Single contact to make on a rising pressure or temperature, rated at 380V AC/ 240V DC, Switching capicity as 30VA/18W (maximum 1 amp), with booster relay upto 6 amps. |
| One normally close Single contact to make om a falling pressure ot temperature |
| Both normally open Double contacts, both caontacts to make ona rising pressure or temperature. |
| One normally open other normally close Double contact, minimum contact to break on a falling pressure or temperature and maximum contact to break on a rising pressure or a temperature. |
| One normally close other normally open double contact, minimum contact to make on a falling pressure or a temperature and maximum contact to make ona rising pressure or temperature. |
| Both normally close Double electric contacts both contacts to break on a rising pressure or temperature. |
|
|
|
|
|
|
|
